PSC-124000-LIFE

DATASHEET

Product Summary

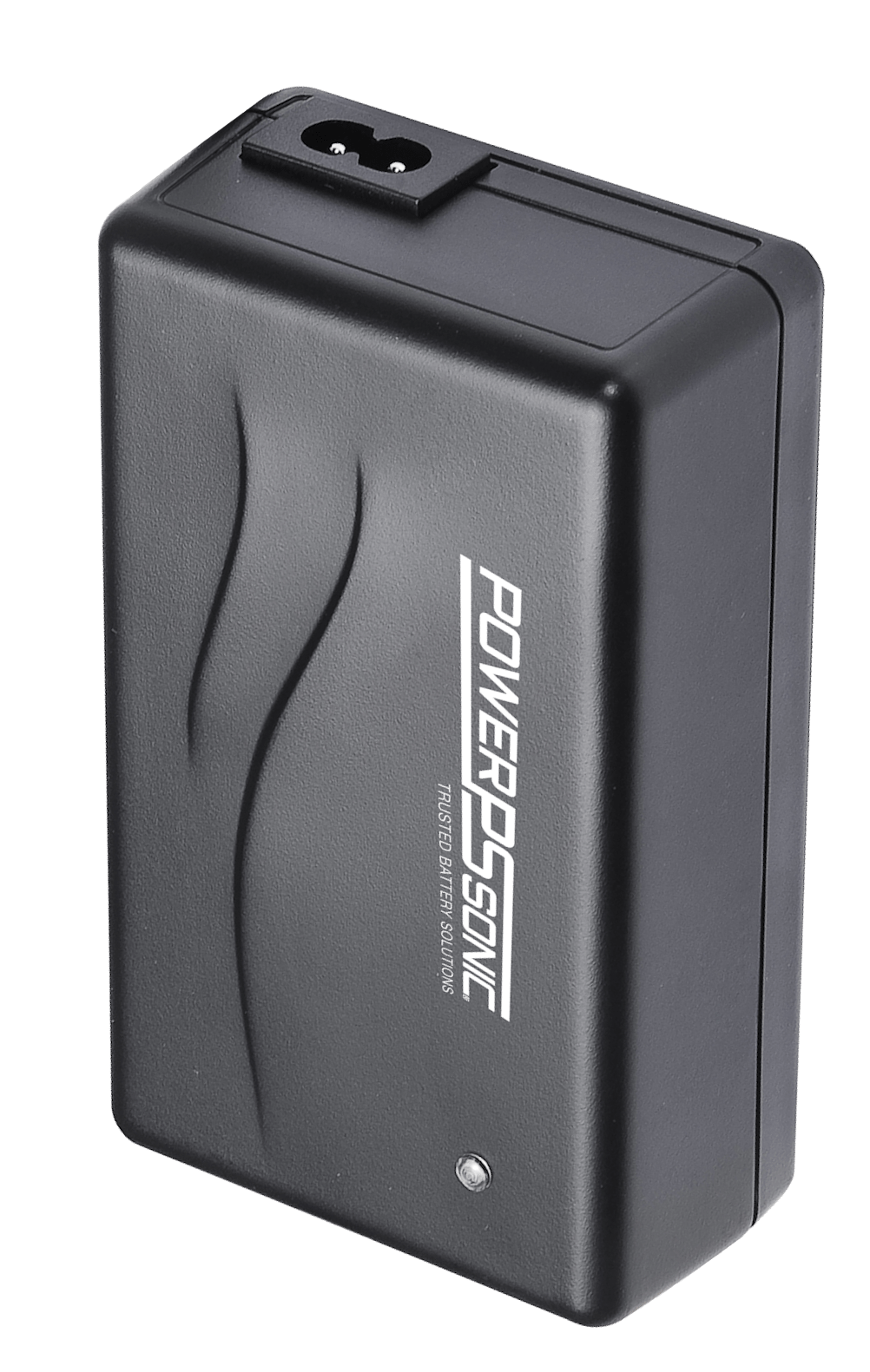

The PSC-124000-LiFe is part of the LiFe series of 3-step LiFePO4 battery chargers. The LiFe Series of lithium chargers feature an intelligent 3-step charging logic, which can help charge even the deepest of discharged batteries. To maximize battery performance and battery life, the optimized charging technology makes the best possible use of the capacities of the batteries to be charged. The 4-Cell 4000mA charger has been medically certified to both EN60601-1 3.1 and Home healthcare EN60601-1-11 making it the ideal choice for any medical application or anyone looking for a top quality charger.

Features

• 4-Cell 4.0A lithium iron phosphate battery charger
• 3-step charge control with current detection
• Universal input voltage (90-264 VAC)
• Manufactured in Europe with high-quality components
• LED indicators
• Alligator clip connectors with insulated sleeves
• UL, CE and DOE compliant
• Medically certified EN60601-1 3.1 and Home healthcare EN60601-1-11

Specifications

• Nominal Voltage: 12.8V
• Output Current: 4.0A
• Output Voltage Float: 14.0V
• Output Voltage Fast Charge: 14.6V
• Charger Design: Plug-in

Dimensions

• Length:  5.31'' / 135mm
• Width:  3.15" / 80mm
• Height:  1.73'' / 44mm
• Weight:  0.4kg / 0.86lbs

Use With

• Voltage: 12.8V
• Capacity: 4 - 40 Ah
